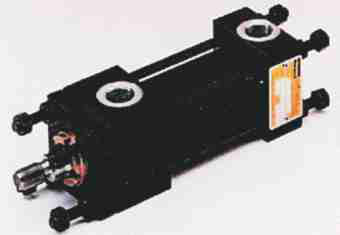

Hydraulic Cylinders Series HMI and HMD HMI/HMD metric cylinder as per ISO 6020/2 and DIN24554

upto working pressure 210 bar Bore sizes 25-200mm
Tie rod cylinders for heavy duty applications.

Hydraulic Cylinders Special Cylinders

Parker’s Cylinder Division designs and manufactures special cylinders to meet customers’ unique requirements.

Hydraulic Cylinders Series 2H

NFPA standard, 210 bar. Bore sizes 38, 1-304, 8mm. Tie rod cylinders for heavy duty applications.

HTR, LTR & PTR Series Rotary Actuators

HTR – 210 bar hydraulic, max output torque 68000 Nm.
LTR – 70 bar hydraulic, max output torque 2350 Nm.
PTR – 18 bar pneumatic, max output torque 560 Nm.

Hydraulic Cylinders Series 3L and 3E

3L – NFPA standard, 70 bar
3L – Bore sizes 25.4-203.2mm
3E – CNOMO standard, 80 bar
3E – Bore sizes 32-125mm
Tie rod cylinders for medium duty applications.

Hydraulic Cylinders with Electrical Feedback and Position Indicators

Various types of electronic position & velocity feedback devices are offered for use with proportional and servo valves. Electrical and mechanical position indicators signal when end of stroke is reached.

Pneumatic Cylinders Series 2A

NFPA standard, 18 bar. Bore sizes 25.4-355.6mm.
Tie rod cylinders with steel tube for heavy duty air applications.

Safety Rod Locking Devices

Fail-safe locking device clamps pistons rod if pressure is lost. For tie rod cylinders, bore sizes 32-160mm.
Load holding capacity 5-100 kN.

Hydraulic Cylinders Series MMA

ISO 6022 standard, 250 bar DIN 24 333 Standard, 250 bar Bore sizes 50-320mm
‘Roundline’ cylinders for heavy-
duty applications.

.

Piston Accumulators

Working pressures upto 210 and 350 bar. Capacities upto 190 litres. Certification to all major standards. Piston accumulators improve efficiency by stabilizing and supplementing pump delivery.

Hydraulic Cylinders Series MMB

ISO 6020/1 standard, 160 bar bore sizes 40-320mm.
‘Roundline’ cylinders for heavy duty applications.

Bladder Accumulators

Working pressure upto 420 bar. Capacities upto 50 litres.
Certification to all major standards. Bladder accumulators improve efficiency by stabilising and supplementing pump delivery.

Directional Control Valves Series D

5 sizes from NG 6 to NG 32. Flow up to 2000 1/min, 350 bar.
Manifold mounting according to DIN, ISO, CETOP, NFPA. Electric, hydraulic, pneumatic and mechanical actuation.

Low Watt Directional Control Valves

Electrical connection to DIN 43650 or M12x1 and DESINA version. Especially suitable for Bus system due to low-current input. Services friendly through leakage free coil change.

Proportional Valves Series D * FH

5 sizes from NG 6 to NG 32. Flow upto 2000 1/min, 350 bar. Manifold mounting according to DIN, ISO, CETOP, NFPA. Interfaces with integrated electronics. High response for closed loop application.

System Blocks

Customized system control manifolds. Normal sizes 10 to 100mm. Flow upto 10,000 1/min, 350 bar. Peak pressure 500 bar. Cast iron or steel block. Cartridge or manifold mounted valves.

Digital Electronics for Valve Amplifier

Digital and reproductible input signals, ramps, parameters.
Double PWM amplifiers. Resolution of signal and actual valve <0.05%. High safety, compliant with EMV specifications. RS 232 serial interface. For electrohydraulic axis regulators.

Sandwich Type Manapak Valves

4 sizes NG 6 to NG 25. Upto 350 bar. RM pressure relief valve.
PRM pressure reduction valve, FM flow control valve, CM directly operated check valve, CPOM Pilot-operated check valve.

Pressure, Flow and Check Valves

4 sizes for NG 6 to NG 32. Flow upto 350 1/min, 350 bar. Manifold mounting, mechanically adjustable, electrically dischargeable or proportionally adjustable through integrated or external electronics.

Pressure Switches

Flange and threaded connection. Switching pressure range 3-40, 10-100, 10-160, 20-250 bar.  Pressure capability 315 bar. Adjustment with hollow hex screw or scaled knob. AC/DC power supply. Optional locking knob.

Flow Contro, Metering and Shut-Off Valves

Manatrol colorflow series. 9 sizes from 1/8″ t0 2″ BSP. Flow upto 600 1/min, 350 bar. Inline and manifold mounting.

Pressure Intensifiers

Mounting pattern NG 6. Check valves NG 6 and NG 10 with  subplate mounting option. Maximum pressure upto 500 bar. Transmission ratio 1:2 and 1:4.  Continuous flow increase with minor pulsation effect.

Slip-in Cartridge Vales Series CE and C, 2 way

DIN 24342
8 sizes NG 16 to NG 100. Flow up to 10,000  1/min, 350 bar. Modular construction system for pilot valves and cartridges. Also as safety valves with position control.

Threaded Cartridge Valves Series PTC

Directional, pressure, flow and shut-off valves. Housing optional. 5 sizes up to 250 1/min, 210 bar. Solenoid or proportional actuaion. Industrial and mobile applications.

High Performance Axial Piston Pumps

Series PV.4. 11 sizes 16 to 270 cc/rev, 350 bar. Speed max 2750 min-1. Single and multiple pumps. Wide rangeof control options. Low noise.For industrial and mobile applications.

Low Speed Hydraulic Motors – Gerotor System

Displacement 45… 960 cc/rev
Torque ..1490 Nm
-1 Speed …. 940 min
Pressure …. 280 bar
Performance … 33 kW
Side loads …30000 N

Medium Duty Axial Piston Pump P1 /PD series

Variable displacement, axial pistonpump for Open-circuit applications. Displacement from 18 cc/rev to 140 cc/rev. Continuous Operating Pressure 280 bar. Intermittent Pressure 320 bar. High drive speed models for mobile applications. Quiet and efficient control.

Hydrostatic Steering units

Series HGF. Sizes 54 to 162 cc/rev. Operating pressure upto 125 bar, used for off-highway vehicles.

Axial Piston Pumps

Series P2 and P3 wide range of control options. 4 sizes., 60 to 145 cc / rev., 137 bar. Speed upto 3000 min-1 Low noise, modular design. Standard and Super charged version available. Single & multiple pumps.

High Speed – Hydraulic Motors

Series M2 / M4.
Displacement 3-90 cc/rev.
Speed upto 5000 rpm
Pressure 200 bar

Axial Piston (Open and closed Loop) Variable Displacement P Series (Hydrostatic Transmission)

Following integrated controls are
available:
– Spring centred rotary servo and
– null adjustment
– Manual screw adjustment
– Electrohydraulic stroker
– Hydraulic stroker
– Adjustable displacement stop
– Brake and neutral by-pass
– Torque limiter
– Servo control with electronic feed
– back
– Pressure compensator
Displacement -98-501 cm3 /rev
Max Speed – 1800 – 3000 rpm
Max Pressure – 300 – 420 bar

DIN Cartridge Relief Valve CVD and CVC Series

Max Flow – 300 – 600 Umin
Max Pressure – 350 bar

Cover versions available

– with integrated pilot valve
– vent option for mounting of 4D01
– directional valve
Cetop 3
– option for mounting of an electrically
– controlled proportional relief pilot valve
– (Vp01)
– option for mounting an electrically
– controlled proportional relief pilot valve
– with feedback (R1EP01)

Double Pumps Fixed Displacement
T6 Series

Displacement – P1 5.8 – 269 cm 3 /rev – P2 5.8 – 269 cm 3 / rev
Max Speed – 2200 – 3600 rpm
Max Pressure – 91 240 – 320 bar – P2 240 – 320 bar

Single Pumps Fixed Displacement
T-Series

Displacement – 5.8 – 269 cm3 / rev
Max Speed – 2200 – 3600 rpm
Max Pressure – 190 – 320 bar

Triple Pumps Fixed Displacement
T6 Series

Displacement – P1 47.6 – 269 cm 3 /rev
Displacement – P2 5.8 – 190.5 cm 3 /rev
Displacement – P3 5.8 – 100 cm3/rev
Max Speed – 2200 – 2500 rpm
Max Pressure – P1 240 bar
Max Pressure – P2 240 – 275 bar
Max Pressure – P3 275 – 300 bar

Vane Motors Fixed Displacement
M Series

Displacement – 11.7 – 222.0 cm3/rev
Max Pressure – 175 – 320 bar
Max Torque – 0.19 – 3.53 Nm / bar
Max Speed – 2500 – 6000 rpm

Radial Motors Fixed Displacement
MR/MRE-MRT/MRTE Series

Displacement – 32 – 23034 cm3 / rev
Max Pressure – 250 – 300 bar
Max Torque – 0.51 – 366.6 Nm/bar
Max Speed – 75 – 1400 rpm

Dual/Variable Displacement MRD/MRV Series

Displacement – 152 – 5301 cm3 / rev
Max Pressure – 250 – 300 bar
Max Torque – 2.42 – 86.01 Nm/bar
Max Speed – 160 – 1000 rpm

Double Pumps Variable & Fixed Displacement
T6H Series

This pump is a combination of a variable axial piston pump and fixed displacement vane pump in a common body.
Displacement – P1 0 – 61.9 cm3 /rev
Displacement – P2 5.8 – 158 cm3 / rev
Max Speed – 2400 – 2600 rpm
Max Pressure – P1 240 – 275 bar
Max Pressure – P2 240 – 300 bar

Remote Control
R1 E 02 Series

Max Flow – 3.81 / min
Max Pressure – 350 bar
Mounting by subplate, foot, panel or cartridge.

Relief Valve Unloader Sequence Reducer
R4 and R5 Series

Max Flow – 90 – 6001 / min
Max Pressure – 210 – 420 bar

EO-2 Fittings

EO-2 version is equipped with soft seal to preent leakage. Suitable for applications involving high vibrations & pressure peaks.

Parker O-Lok O-Ring Face Seal Fittings (ORFS)

Soft seal fittings provide leak free connections for high pressure hydraulic systems. Excellent where reliability, versatility and ease of assembly are important factors.

EO-2 Progressive Ring Fittings

For use in high pressure industrial applications. Available in various sizes & configurations for utmost flexibility.

Triple-Lok JIC 37 Fittings

Triple-Lok is a universal 37flared fitting for medium pressure applications. Usable with metric or inch size tubes, or hoses.

EO-DUR Stainless Steel Fittings

EO-DUR fittings with specially coated nuts are ideally suited for use in chemical, process & offshore industries.

EO Brass Fittings

EO brass fittings are available in different designs of EO standard range and approved foruse in medium corrosion environments such as ship- buildings, central lubrication and plant construction.

Metru-Lok Medium Pressure Brass Tube Fittings

One-piece Metru-Lok is ready to use bite type fitting for use with copper or plastic tubing

Tubes and Tube Bends

Seamless EO tubes and tube bends according to DIN 2391.
Material:
St 37.4 steel and 1.4571/1.4541 stainless steel

EO Shut-Off/ High Pressure and 2-way Bal valves Shut-off and High Pressure
Valves

Product range:
series L from 6 to 35 mm tube o.d.,
series S from 6 to 38 mm tube o.d.

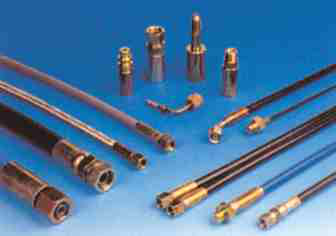

Polyflex/Parflex High Pressure Thermoplastic Hoses

Pressure range up to 70 Mpa, with outstanding flexibility,
low volumetric expansion, small bend radius, light weight. Single or multiple lines with crimped couplings.
Construction: Thermoplastic materials with reinforcement of fibre or steel wire braids or spirals.

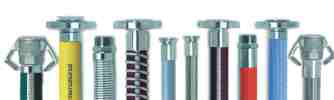

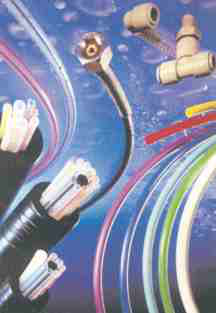

Polyflex Products for Beverage and Domestic Applications

Beverage Industry:
Single line food quality tubing made of (LDPE, PVC, PVDF,
PA and EVA), multi layered extruded tubing “Python” thermally insulated multicore bundles, thermoplastic “TrueSeal” fittings and associated products.

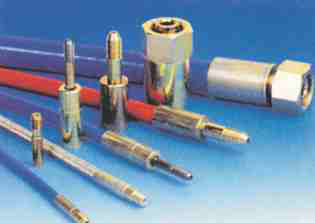

Polyflex Thermoplastic Ultra High Pressure Hoses

Pressure range from 70 Mpa to 400MPa, low volumetric expansion.
Applications: Hydraulic tools, tension elements, test rigs, metal forming and off-shore. Crimped couplings of special steel with maximum operating safety.

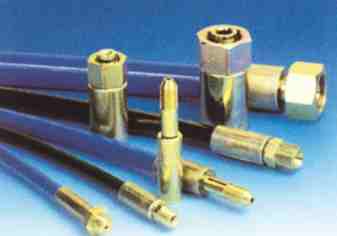

Polyflex Ultra High Pressure Thermoplastic Hoses for Water Jetting Technology

For pressure upto 400 Mpa,
low volumetric expansion, excellent impulse resistance.
Application: High pressure cleaning, tube cleaning, concrete repair, sewer cleaning and repair, water jet cutting, crimped couplings in special steel of maximum operating safety.

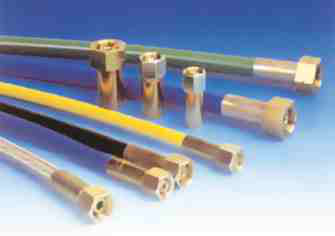

Polyflex Thermoplastic Hoses for Surface Finishing.

Low and high pressure applications, excellent chemical resistance against paints and solvents, electric conductivity throughout service life. Application: Paint Spraying, 2 Component equipment. Crimped couplings of free-cutting or stainless steel.

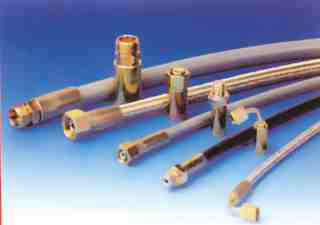

Polyflex/Parflex PTFE Hoses

With Excellent resistance against aggressive media.
Application: chemical Industry,
low and high pressure plants for expanded plastics, technical gases. Crimped couplings for assembly at your work shop according to Polyflex/ Parkrimp assembly system.

Polyflex Products for Offshore Technologies

Single line hoses and hose umbilicals for On-and Off-shore applications. Long length, high temperature, light weight hoses for Subsea Controls.

Parker PAGE Hose

Parker PAGE Hose, are leaders in the design and manufacturing of Fluoropolymer and Fittings Application: Chemical Transfer, Cooling Lines, Oil & Gas Transfer, Food & Beverage, Air & Gas Transfer, Pig Tails, Robotics,
Hot Glue Applicators, Compressor Discharge, Paint Lines, Powder Coating, Trim Tabs, Dispensing Sealants,

SPIRAFLEXTM EN 856 4SP

Application: Very high pressure hydraulics
Construction Tube: Oil resistant synthetic rubber
Reinforcement Cover: 4 high tensile steel wire spirals. Synthetic rubber – abrasion, ozone and weather resistant
Temp. Range: -40oC to + 100oC conitnuous +125oC intermittent
Impulse Cycles: Minimum 400,000
Size: 3/8” to 2”

SPIRAFLEXTM EN 856 4SH

Application: Extra high pressurehydraulics
Construction Tube: Oil resistantsynthetic rubber
Reinforcement Cover: 4 high tensilesteel wire spirals. Synthetic rubber -abrasion, ozone and weather resistant
Temp. Range: -40oC to + 100oC conitnuous +125oC intermittent
Impulse Cycles: Minimum 400,000
Size: 3/4” to 2”

SPIRAFLEXTM SAE 100 R9AT

Application: High pressure hydraulics Construction Tube: Oil resistant synthetic rubber
Reinforcement Cover: 4 high tensile steel wire spirals. Synthetic rubber –
abrasion, ozone and weather resistant
Temp. Range: -40oC to + 100oC conitnuous +121oC intermittent
Impulse Cycles: Minimum 300,000 -200,000.
Size: 3/8” to 2”

SPIRAFLEXTM EN 856 R12

Application: Very high pressure hydraulics
Construction Tube: Oil resistant synthetic rubber
Reinforcement Cover: 4 high tensilesteel wire spirals. Synthetic rubber –
abrasion, ozone and weather resistant
Temp. Range: -40oC to + 100oC conitnuous +121oC intermittent
Impulse Cycles: Minimum 500,000
Size: 3/8” to 2”

SPIRAFLEXTM EN 856 R13

Application: Extremely high pressure hydraulics
Construction Tube: Oil resistant synthetic rubber
Reinforcement Cover: 4 or 6 high tensile steel wire spirals. Synthetic rubber – abrasion, ozone and weather resistant.
Temp. Range: -40oC to + 100oC
conitnuous +121oC intermittentt
Impulse Cycles: Minimum 500,000
Size: 3/8” to 2”

SPIRAFLEXTM SAE 100 R15

Application: Extremely high pressure, heavy duty, high impulse hydraulics
Construction Tube: Oil resistant synthetic rubber
Reinforcement Cover: 4 or 6 high tensile steel wire spirals. Synthetic rubber – abrasion, ozone and weather resistant
Temp. Range: -40oC to + 100oC continuos +121oC intermittent
Impulse Cycles: Minimum 500,000
Size: 3/4” to 2”

OMEGA-FLEX 3TM
Half bend radius R12

Application: Very high pressurenhydraulic with half the bend radius Construction Tube: Oil resistant synthetic rubber
Reinforcement Cover: 4 high tensile steel wire spirals. Synthetic rubber –
abrasion, ozone and weather resistant
Temp. Range: -40oC to + 121oC. max
Impulse Cycles: Exceeds one million cycles of SAE 100 R12 specification.*
Size: 3/8” to 2”

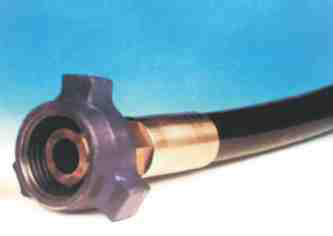

Fly Ash Hose

Application: For discharge of dry bulk materials, dry cement, sand, fly ash, gravels, etc
Tube: Ceramic hexagonal plates, embedded in BR/NR-rubber compound with highly abrasion resistance.
Construction: Inner tube – Abrasion resistant conductive Rubber.
Reinforcement – High Tensile Synthetic Textile & antistatic copper wire.
Outer cover – Synthetic Rubber
Temperature Range: – 40°C to + 70°C, -40° F to + 158° F
